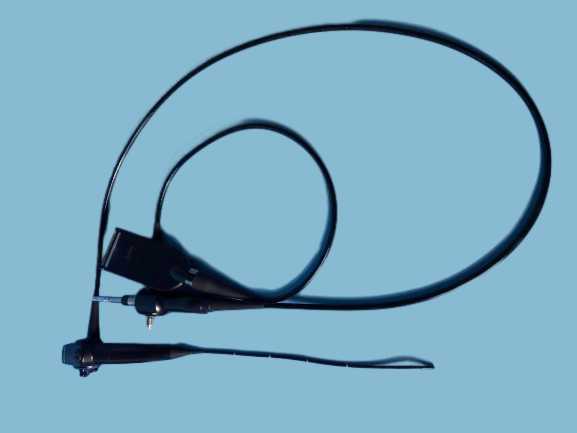

ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees
  • ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees
  • ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees
  • ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees
  • ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees
ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees

ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees

Numer modelu ENF-VH
Szczegóły Produktu
Typ:
Elastyczny
Tworzywo:
Metale i tworzywa sztuczne
Stan:
Dobry
Stosowanie:
Diagnoza medyczna
Pole widzenia:
Szeroki kąt
Rozdzielczość obrazu:
Wysoka rozdzielczość
Intensywność światła:
Wysoki
Warunki płatności i wysyłki
Minimalne zamówienie
1 sztuka
Cena
negotiable
Szczegóły pakowania
Standardowe opakowanie
Czas dostawy
5-7 dzień
Zasady płatności
T/T itp.
Opis produktu

ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees



The Olympus ENF‑VH is a flexible video endoscope, specifically a rhinolaryngoscope used in ear, nose, and throat (ENT) medicine. It’s designed for transnasal examinations, meaning it’s gently inserted through the nose to view the nasal passages, throat, and voice box (larynx).





1. Key Features:





High-definition (HD) imaging for clear, detailed visuals.
Wide field of view (~110°) to see a large area at once.
Flexible insertion tube with a thin distal end (~3.9 mm) for comfort.
Angulation control: up/down 130° to navigate anatomy.
Narrow Band Imaging (NBI): highlights blood vessels and mucosal patterns for better diagnostics.
Compatible with Olympus video systems like VISERA ELITE for display and recording.





2. Main Use:



Diagnosing throat or voice problems (hoarseness, nodules, tumors).
Evaluating swallowing or airway issues.
Performing laryngoscopy exams and sometimes pre-surgery assessments.





Field of view: 110°
Direction of view: 0° (straight forward)
Depth of field: 5 – 50 mm

Distal end outer diameter: 3.9 mm
Insertion tube outer diameter: 3.6 mm
Maximum insertion diameter: 4.4 mm
Working length: 300 mm

Up: 130°
Down: 130°

Total length: ~510 mm





ENF-VH Flexible Scope Flexible Rhinolaryngoscope Field Of View 110 Degrees 0





Major Structure of Flexible Endoscope




Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.




A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.







Four Major Flexible Endoscope Structures




Control body
Insertion tube
Bending section/distal tip
Light guide connector
